Semi automatic pet bottle Blow Molding Machine for pet preform 6l-2
Semi automatic pet bottle Blow Molding Machine for pet preform 6l-2
Semi automatic pet bottle Blow Molding Machine for pet preform 6l-2
Semi automatic pet bottle Blow Molding Machine for pet preform 6l-2
Semi automatic pet bottle Blow Molding Machine for pet preform 6l-2
Semi automatic pet bottle Blow Molding Machine for pet preform 6l-2
Model
6l-2

Item specifics

Voltage
380V
Power(W)
40
Condition
New
Application
Bottle
Plastic Processed
PET

Review

Description

Quick Details

Automatic:Other                                                         Weight:800kg                                                          Certification:TUV

Warranty:1 Year                                                         Number of Cavity:1-2Cavities                                  Healing Power:40KW

Energy Saving:yes                                                     Color:any color client require                                   Clamping Force:47000N

Clamping Stroke:215mm                                            Main Machine Weight:400kg                                   Theoretical output:800-1200bph

Operating Pressure:7-9kg/cm2                                   After-sales Service Provided:Engineers available to service

Dimension(L*W*H):2000*780*1800(mm)                    Main Machine Dimensions:2000 * 780*1800mm

Place of Origin:Jiangsu, China (Mainland)                  Blow Moulding Type:Injection Blow Moulding

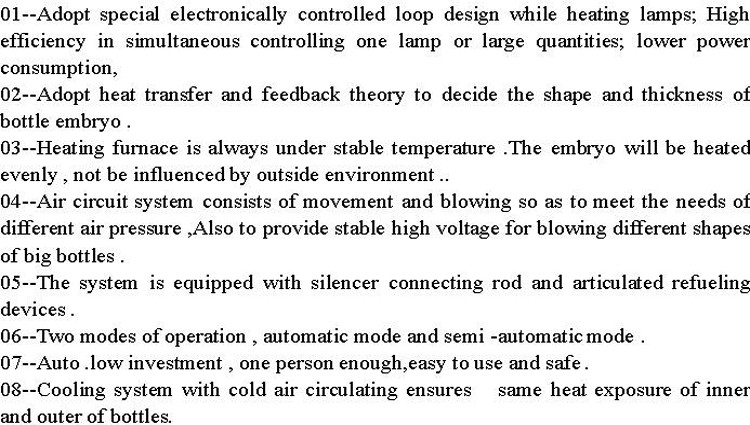

Machine Feature




Product Specification

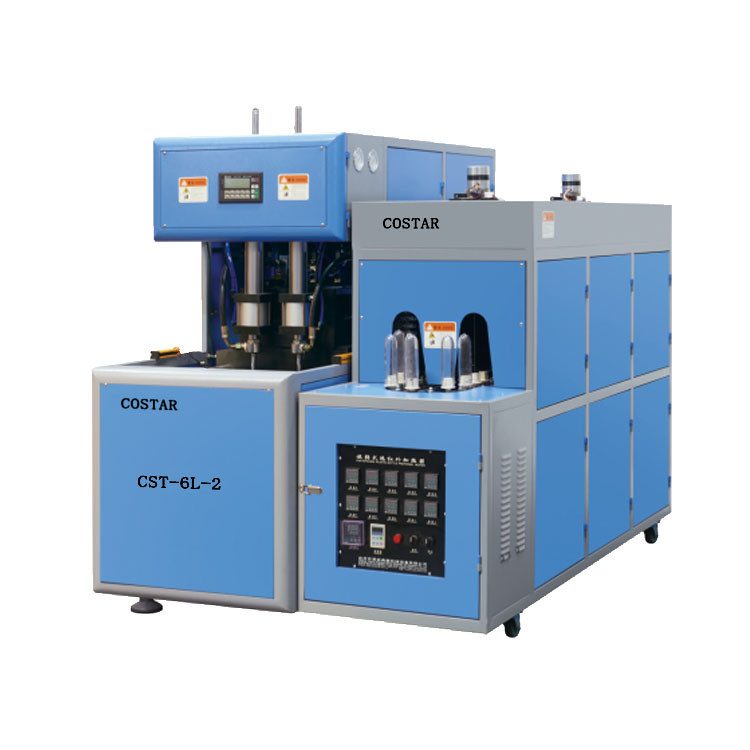

CST-6L-2

Clamping Force

kg

47000

Clamping Stroke

mm

215

Stretching Stroke

mm

400

Bottom stroke

mm

/

Cavity Spacing

mm

90-120

Number of Cavity

Cavities

1-2

Carriage Unit

pcs

96

Theoretical output

bph

800-1200

Total Power

kw

42

Healing Power

kw

40*1KW=40

Number of Lamp Layers

Layers

10

Operating Pressure

kg/cm2

7-9

Low Pressure Air Consumption

ltr/min

800

Blowing Pressure

kg/cm2

20-30

High Pressure Air Consumption

ltr/min

1600

Operating Pressure

kg/cm2

2-4

Temperature Range

10-12

Consumption

kcal/hr

2000

Flow Rate

ltr/min

100

Main Machine Dimensions

mm(L*W*H)

2000*780*1800

Main Machine Weight

kg

800

Preform Loader Dimensions

mm(L*W*H)

2170*670*1600

Preform Loader Weight

kg

400



Supply Ability

Supply Ability:400 Set/Sets per Month

Packaging & Delivery

Packaging Details              Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port                                   Shanghai Port/Ningbo Port
