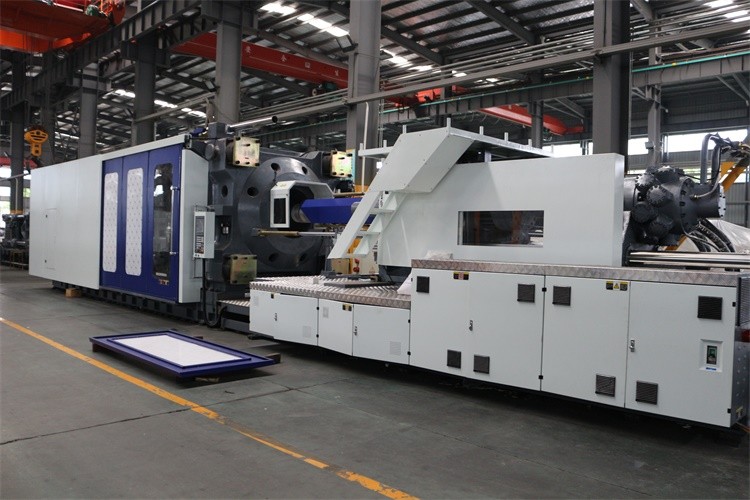

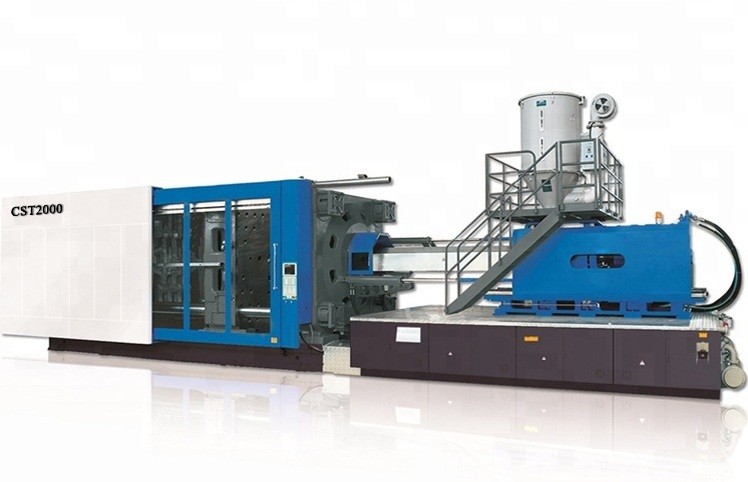

CST2000/16100 plastic injection molding machine
CST2000/16100  plastic injection molding machine
CST2000/16100  plastic injection molding machine
CST2000/16100  plastic injection molding machine
CST2000/16100  plastic injection molding machine
CST2000/16100  plastic injection molding machine
Model
CST2000/16100

Item specifics

Condition
New
Type
Preform Injection
Clamping Force
20000KN
Style
Horizontal
Place of origin
Jiangsu, China (Mainland)

Review

Description

Quick Details

Plastic Type:Thermoplastic                             Automatic:Yes                                                      Injection Weight:7851-11892g

Injection Rate:1162-1899g/s                           Opening Stroke:1560mm                                     Power(W):103.5kw

Certification:TUV CE                                       Machine weight:128T                                          Machine dimension(L*W*H):15.6m*3.50m*4.00m

Machine heating power:103.5kw                     Space between tie-bars:1620*1480mm              Screw L/D ratio:19.2-23.7L/D

Screw diameter:130-160mm                            Product material can use:PP/PE/ABS/PS/PC/PA/POM/PET/PVC

Injection pressure:123-186Mpa                       Warranty:1 year                                                  Color:any color client require

After-sales Service Provided:Engineers available to service

Supply Ability

Supply Ability:  400 Set/Sets per Month

Packaging & Delivery

Packaging Details :   Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port Port :                     Shanghai Port/Ningbo Port


2000 ton plastic injection molding machine price


CST2000/16100



A

B

c

d

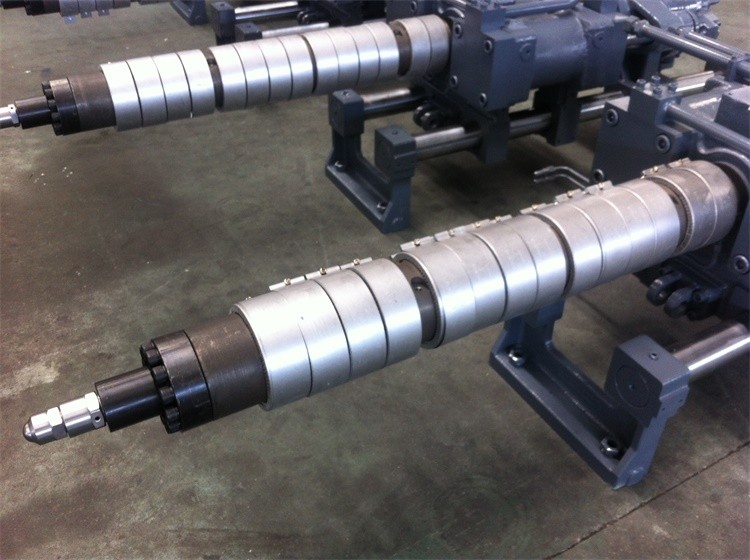

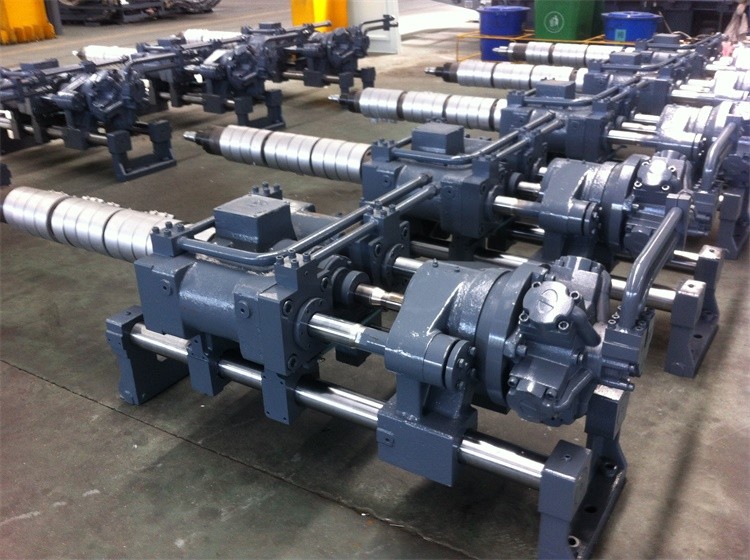

Injection Unit



Screw diameter

mm

130

140

150

160

Screw L/D ratio

L/D

23.7

22

20.5

19.2

Injection capacity in theory

cm3

8627

10005

11486

13069

Injection weight(ps)

g

7851

9105

10452

11892

oz

276.9

321.1

368.6

419.4

Injection pressure

MPa

186

161

140

123

Injection rate

g/s

1162

1348

1548

1800

Plasticizing capacity

g/s

141

150

158

162

Screw speed

rpm

95

Clamping Unit



Clamping force

kN

20000

Moving mould-plate stroke

mm

1560

Max.Mould height

mm

1560

Min.Mould height

mm

710

Space between tie-bars

mm

1620x1480

Hydraulic ejector force

kN

480

Hydraulic ejector stroke

mm

400

Ejector number

n

33

Other



Pump pressure

MPa

16

Motor/Driving power

kW

45 + 45 + 45/37 x 4

Heating capacity

kW

103.5

Machine dimension

m

15.60 x 3.50x4.00

Machine weight

t

128

Oil tank capacity

L

3500

Machine Feature

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication, provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
