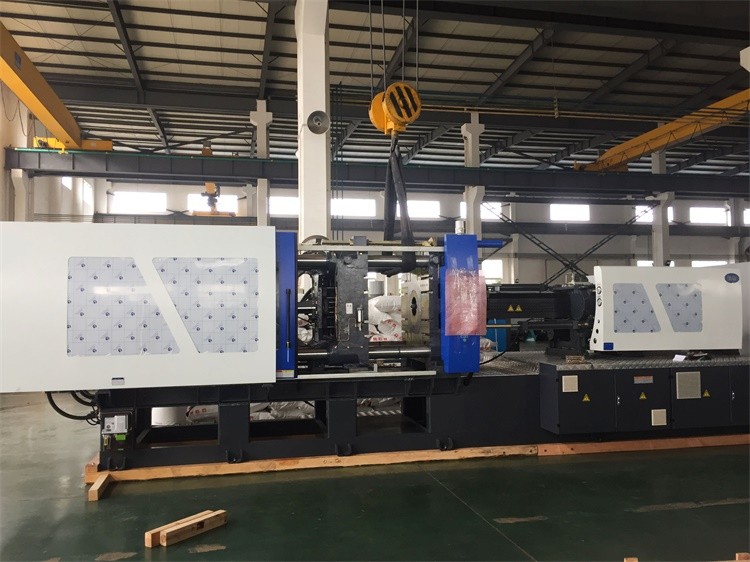

CST530-Ⅱ/3800 injection molding machine
CST530-Ⅱ/3800 injection molding machine
CST530-Ⅱ/3800 injection molding machine
CST530-Ⅱ/3800 injection molding machine
CST530-Ⅱ/3800 injection molding machine
CST530-Ⅱ/3800 injection molding machine
Model
CST530-Ⅱ/3800

Item specifics

Condition
New
Type
Preform Injection
Automatic
Yes
Style
Horizontal
Warranty
1 year
color
any color client require
product material can use
PP/PE/ABS/PS/PC/PA/POM

Review

Description

omega 298 ton pvc pipe fitting of horizontal injection molding machine



CST530-/3800



A

B

c

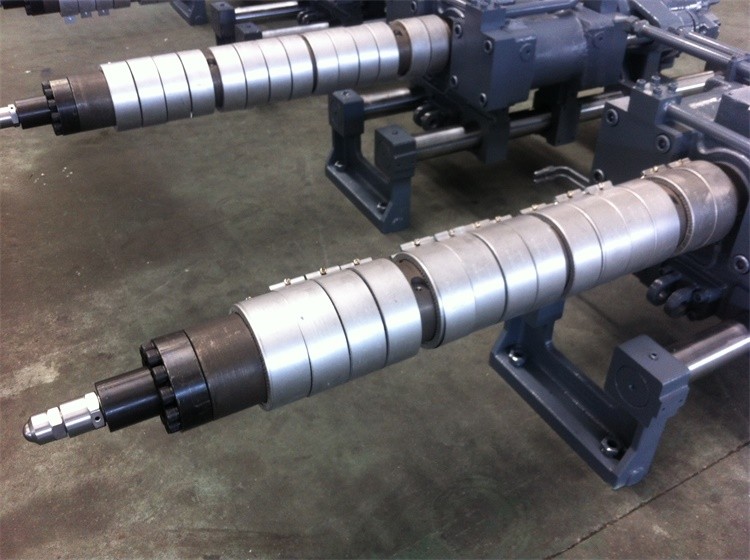

Injection Unit



Screw diameter

mm

80

85

90

Screw L/D ratio

L/D

21.3

20

18.9

Injection capacity in theory

cm3

2110

2382

2670

Injection weight(ps)

g

1920

2168

2430

oz

67.7

76.4

85.7

Injection pressure

MPa

188

167

149

Injection rate

g/s

437

494

571

Plasticizing capacity

g/s

62

71

82

Screw speed

rpm

130

Clamping Unit



Clamping force

kN

5300

Moving mould-plate stroke

mm

830

Max.Mould height

mm

830

Min.Mould height

mm

330

Space between tie-bars

mm

860x810

Hydraulic ejector force

kN

181

Hydraulic ejector stroke

mm

230

Ejector number

n

17

Other



Pump pressure

MPa

16

Motor/Driving power

kW

55/30x2

Heating capacity

kW

28.85

Machine dimension

m

8.35x2.14x2.57

Machine weight

t

20.5

Oil tank capacity

L

1156



Supply Ability

Supply Ability:  400 Set/Sets per Month

Packaging & Delivery

Packaging Details :   Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port :                         Shanghai Port/Ningbo Port
Lead time:                 30-45day



Machine Feature

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,

provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
