CST 1.9 ton small Injection Molding Machine

Group Injectiion Molding Machine
Min. Order 1 piece
Terms of Payment all
Update Time 2019-02-15
Item specifics
ConditionNew
TypePreform injection
Clamping Force650
StyleHorizontal
Warranty:1 year1 year
  • Description
  • Product review
Quick Details

Place of Origin:Jiangsu, China (Mainland)                     Plastic Type:Thermoplastic                         Automatic:Yes

Injection Weight:67-123g                                               Injection Rate:40-74g/s                                Opening Stroke:270

Power(W):7.5-11kw                                                        Certification:TUV CE                                   Injection pressure:123-229Mpa

Warranty:1 Year                                                              Machine weight:1.9T                                  Machine dimension(L*W*H):3.63x 1 x 1.75

machine heating power:7.4kw                                        Short weight:67-123g                                  Screw L/D ratio: 18-24.3

screw diameter:28mm-38mm                                         product material can use:PP/PE/ABS/PS/PC/PA/POM/PET/PVC/ect

any color client require                                        After-sales Service :Video technical support

Machine Feature

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

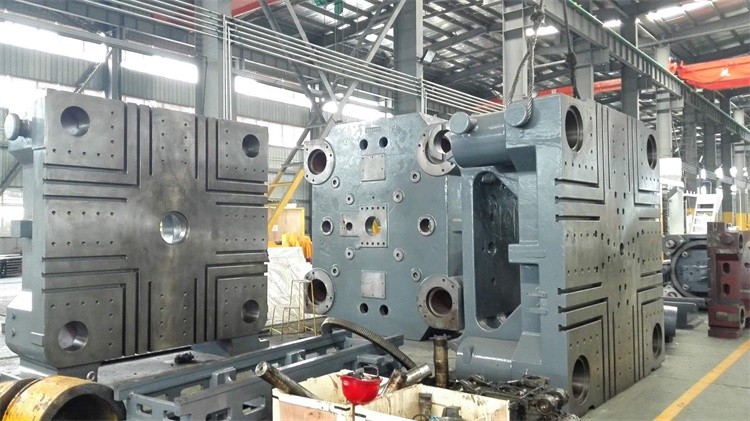

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,

provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.




Product specification



CST65/160



A

B

c

d

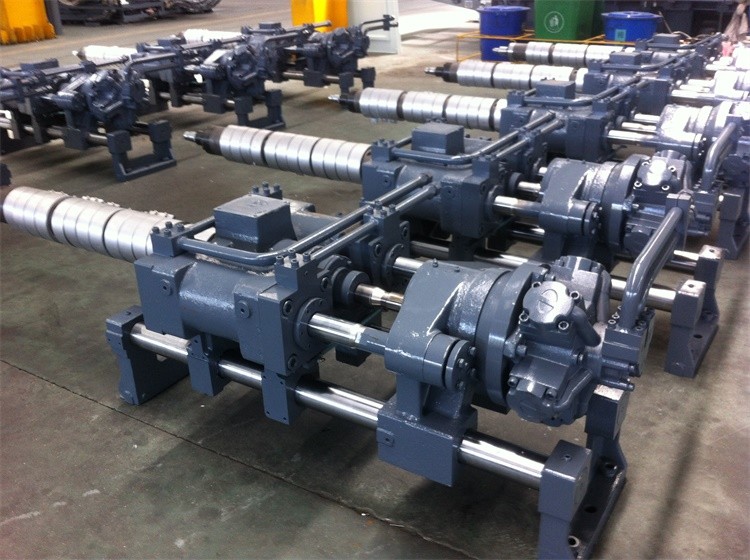

Injection Unit











Screw diameter

mm

28

32

35

38

Screw L/D ratio

L/D

24.3

21.3

19.5

18

Injection capacity in theory

cm3

73

96

115

136

Injection weight(ps)

g

67

87

105

123

oz

2.3

3.0

3.7

4.3

Injection pressure

MPa

229

175

146

123

Injection rate

g/s

40

55

66

74

Plasticizing capacity

g/s

6

8

10

12

Screw speed

rpm

190

Clamping Unit











Clamping force

kN

650

Moving mould-plate stroke

mm

270

Max.Mould height

mm

300

Min.Mould height

mm

100

Space between tie-bars

mm

310x290

Hydraulic ejector force

kN

27.5

Hydraulic ejector stroke

mm

65

Ejector number

n

1

Other





Pump pressure

MPa

16

Motor/Driving power

kW

7.5/11

Heating capacity

kW

7.4

Machine dimension

m

3.53 x 1 x 1.75

Machine weight

t

1.9

Oil tank capacity

L

117




Supply Ability

Supply Ability:400 Set/Sets per Month  1.9t Injection Molding Machine


Packaging & Delivery

Packaging Details              Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port                                   Shanghai Port/Ningbo Port
