CST330-Ⅰ/1580 injection molding machine
- Model
- CST330-Ⅰ/1580
Item specifics
- Condition
- New
- Type
- Preform Injection
- Automatic
- Yes
- Style
- Horizontal
- Warranty
- 1 year
- color
- any color client require
Review
Description
CST330-Ⅰ/1580 | ||||
A | B | c | ||
Injection Unit | ||||
Screw diameter | mm | 60 | 65 | 70 |
Screw L/D ratio | L/D | 22.7 | 21 | 19.5 |
Injection capacity in theory | cm3 | 905 | 1062 | 1232 |
Injection weight(ps) | g | 841 | 1000 | 1145 |
oz | 29.6 | 34.8 | 40.4 | |
Injection pressure | MPa | 219 | 186 | 161 |
Injection rate | g/s | 243 | 285 | 331 |
Plasticizing capacity | g/s | 40 | 48 | 57 |
Screw speed | rpm | 160 | ||
Clamping Unit | ||||
Clamping force | kN | 3300 | ||
Moving mould-plate stroke | mm | 660 | ||
Max.Mould height | mm | 750 | ||
Min.Mould height | mm | 250 | ||
Space between tie-bars | mm | 720x670 | ||
Hydraulic ejector force | kN | 125 | ||
Hydraulic ejector stroke | mm | 180 | ||
Ejector number | n | 13 | ||
Other | ||||
Pump pressure | MPa | 16 | ||
Motor/Driving power | kW | 30/37 | ||
Heating capacity | kW | 20.35 | ||
Machine dimension | m | 7.02 x 1.77 x 2.18 | ||
Machine weight | t | 11 | ||
Oil tank capacity | L | 680 | ||
Supply Ability
Supply Ability: 400 Set/Sets per Month
Packaging & Delivery
Packaging Details : Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port : Shanghai Port/Ningbo Port
Lead time: 30-45day

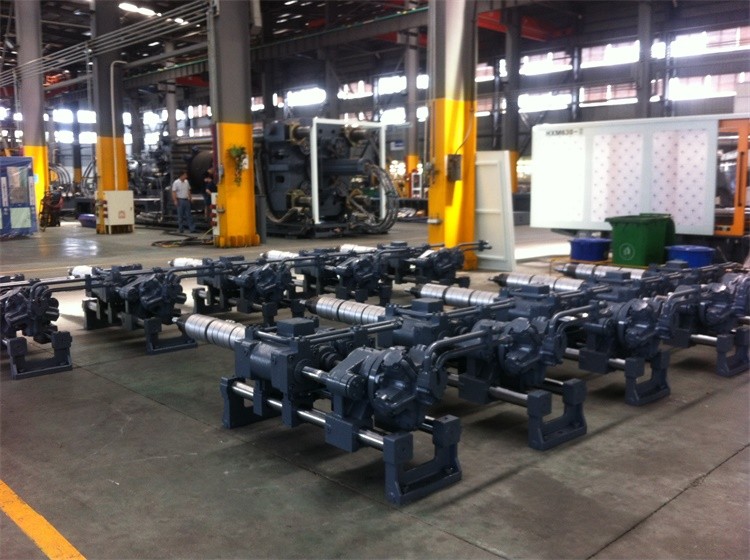

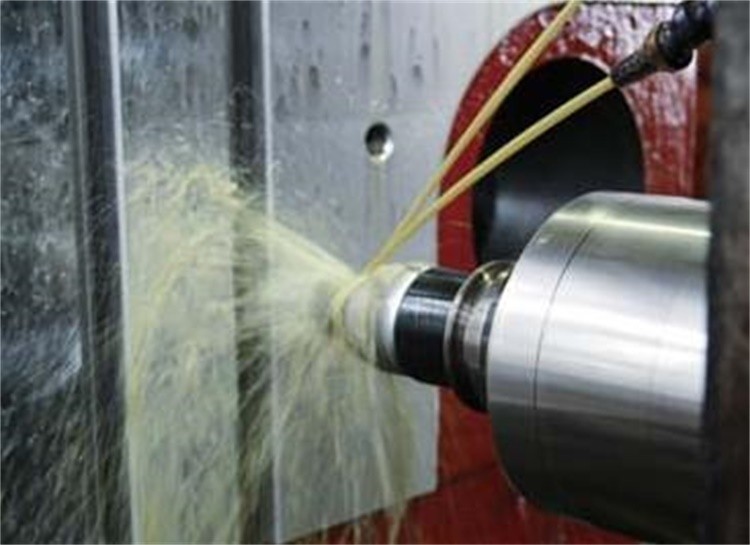

Parts show
Machine Feature
1 Enhanced clamping mechanism to meet requirements for efficient production.
2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.
3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.
4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.
5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.
6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,
provide more professional lubrication protection and extend mechanical life.
7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
