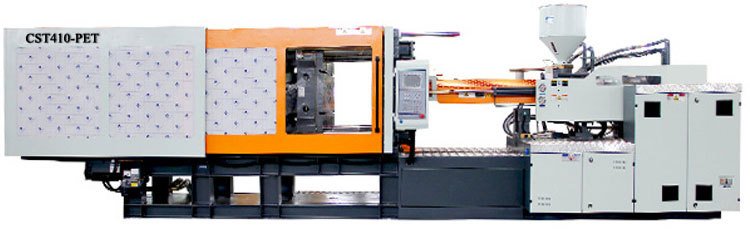

CST410PET injection molding machine

Group Production injection molding machine
Min. Order 1 piece
Terms of Payment all
Update Time 2020-11-02
Item specifics
TypePreform Injection
Warranty1 year
colorany color client require
  • Description
  • Product review

Supply Ability

Supply Ability:       400 Set/Sets per Month

Packaging & Delivery

Packaging Details :   Set 410 ton pet preform injection molding machine price pet bottle injection molding machine of Wooded pallet package, standard ocean shipping package
Port :                         Shanghai Port/Ningbo Port
Lead time:                 30-45 days

410 ton pet preform injection molding machine price

Injection Unit
Screw diameter mm 85
Screw L/D ratio L/D 24
Injection capacity in theory cm3 2099
Injection weight(ps) g 2225
oz 78.6
Injection pressure MPa 135
Injection rate g/s 503
Plasticizing capacity g/s 120
Screw speed rpm 160
Clamping Unit
Clamping force kN 4100
Moving mould-plate stroke mm 700
Max.Mould height mm 800
Min.Mould height mm 280
Space between tie-bars mm 770x720
Hydraulic ejector force kN 180
Hydraulic ejector stroke mm 1180
Ejector number n 13
Pump pressure MPa 16
Motor/Driving power kW 45/30+23
Heating capacity kW 32.85
Machine dimension m 8.21 x 1.96x2.35
Machine weight t 14.2
Oil tank capacity L 687
Machine Feature:


1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication, provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.

410 ton pet preform injection molding machine price

410 ton pet preform injection molding machine price

410 ton pet preform injection molding machine price
