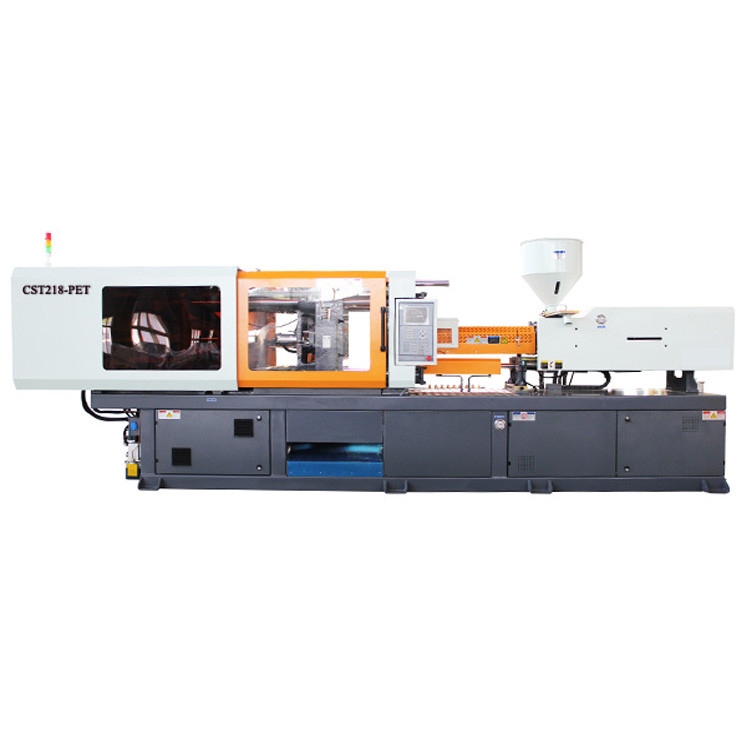

CST218PET injection molding machine

Group Injectiion Molding Machine
Min. Order 1 piece
Terms of Payment all
Update Time 2019-03-15
Item specifics
ConditionNew
TypePreform Injection
AutomaticYes
StyleHorizontal
Warranty1 year
colorany color client require
Description

omega 298 ton pvc pipe fitting of horizontal injection molding machine



CST218PET

Injection Unit



Screw diameter

mm

65

Screw L/D ratio

L/D

24

Injection capacity in theory

cm3

962

Injection weight(ps)

g

1019

oz

36

Injection pressure

MPa

143

Injection rate

g/s

316

Plasticizing capacity

g/s

76

Screw speed

rpm

150

Clamping Unit



Clamping force

kN

2180

Moving mould-plate stroke

mm

520

Max.Mould height

mm

580

Min.Mould height

mm

200

Space between tie-bars

mm

520x520

Hydraulic ejector force

kN

80

Hydraulic ejector stroke

mm

150

Ejector number

n

9

Other



Pump pressure

MPa

16

Motor/Driving power

kW

22/30

Heating capacity

kW

22.7

Machine dimension

m

6.5 x 1.34x2.125

Machine weight

t

6.9

Oil tank capacity

L

281































Supply Ability

Supply Ability:       400 Set/Sets per Month

Packaging & Delivery

Packaging Details :   Wooded pallet package, standard ocean shipping package of injection molding moulding machinePort :                         Shanghai Port/Ningbo Port Lead time:                 30-45day


Machine Feature

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.
3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.
4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.
5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.
6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,
provide more professional lubrication protection and extend mechanical life.
7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
